DrageEngineAnalyzer - Program

Its a selfmade program for viewing realtime data from the Me7 logger. The Me7 Logger program is running in the background, while Im reading data from the log-file.

If youre already know how Me7 works, this is pretty easy to setup.
If youre new to Me7, you need to setup Me7 before installing my program. Read my Me7 tabpage for more info.

My program works only on Windows operatin systems, that a look att my tabpage (requirements, install and setup) for installing.

Release notes:

June 6th 2020 - NEW

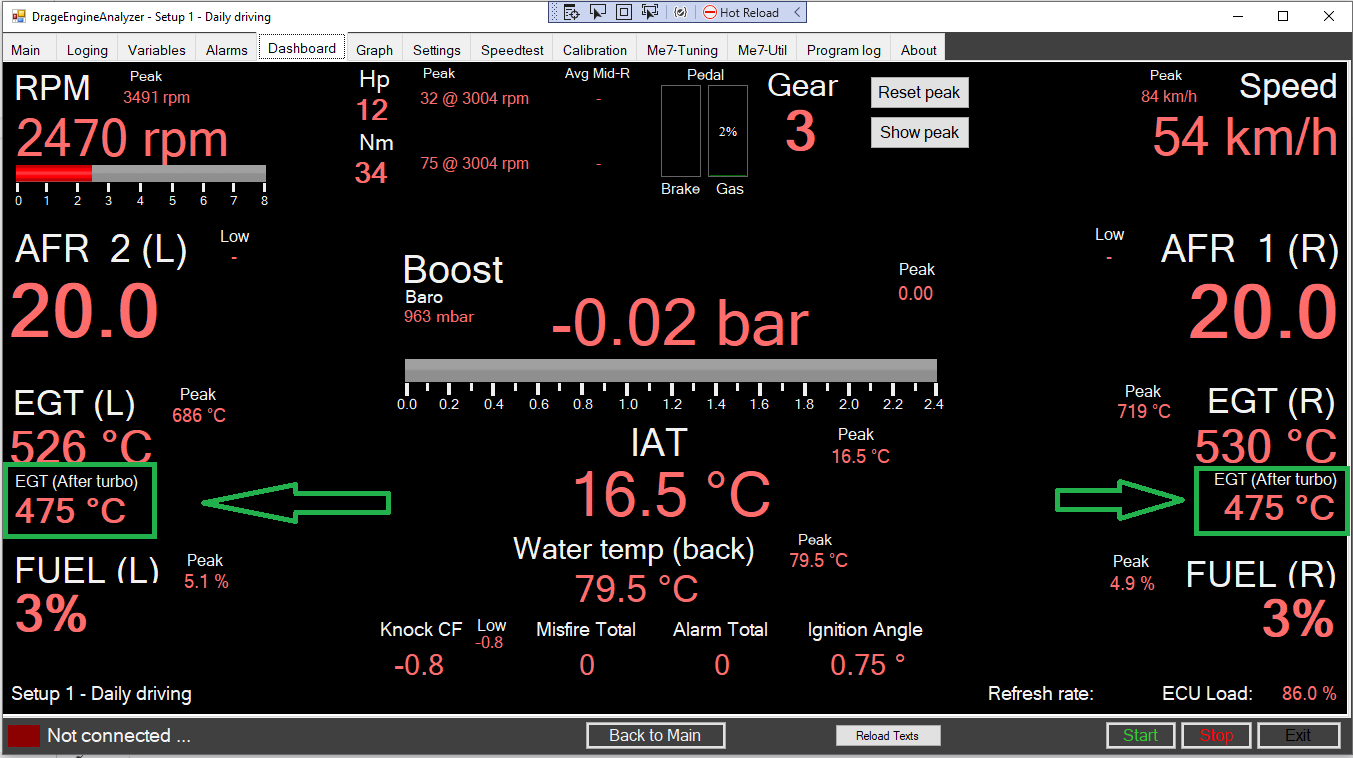

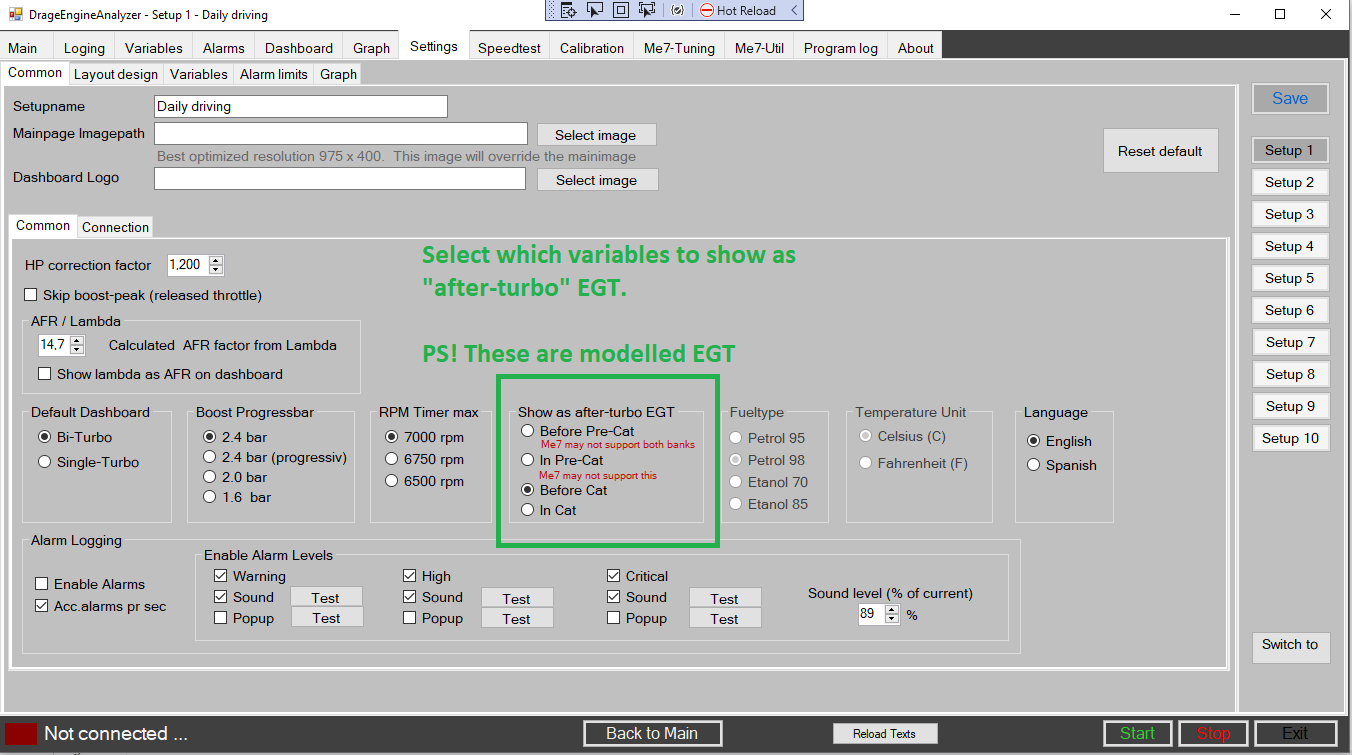

  • Added modellert Precat EGT and modellert Cat EGT)
  • Pull timer: you can change top range RPM between 6500 and 7000
  • Fixed bugfix for the pull Timer(2 columns were switched)

    Mars 22th 2020
  • Added adjustable 'Step' for the Y-axis (graph module)

    Mars 21th 2020

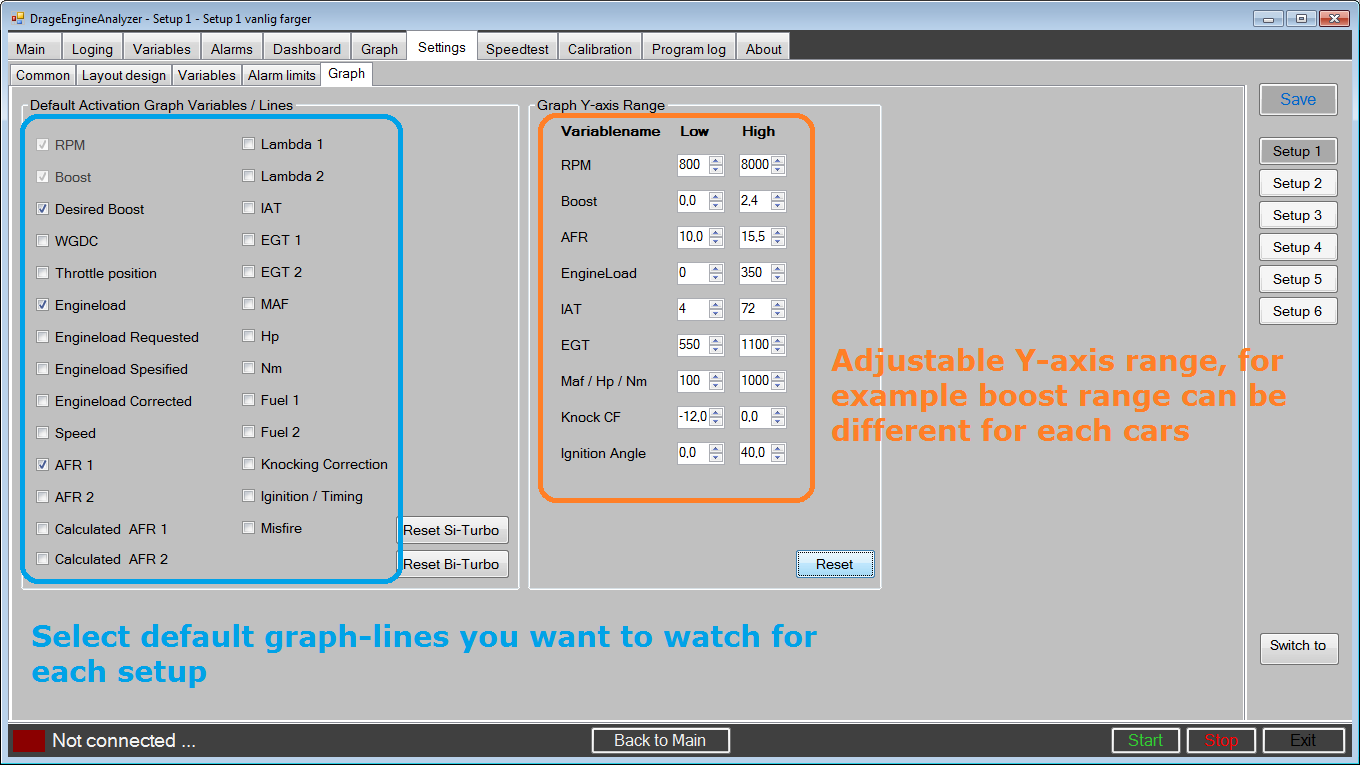

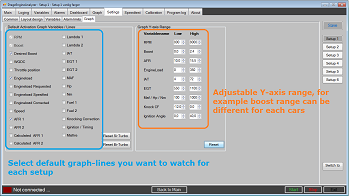

  • Added adjustable Y-axis for the graph module
  • Added setting for skipping boostpeak when relasing the throttle
  • Fixed better default values when starting the program for the first time

    February 26th 2020
  • Fixed default alarm values

    February 22th 2020

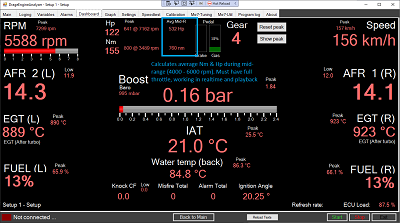

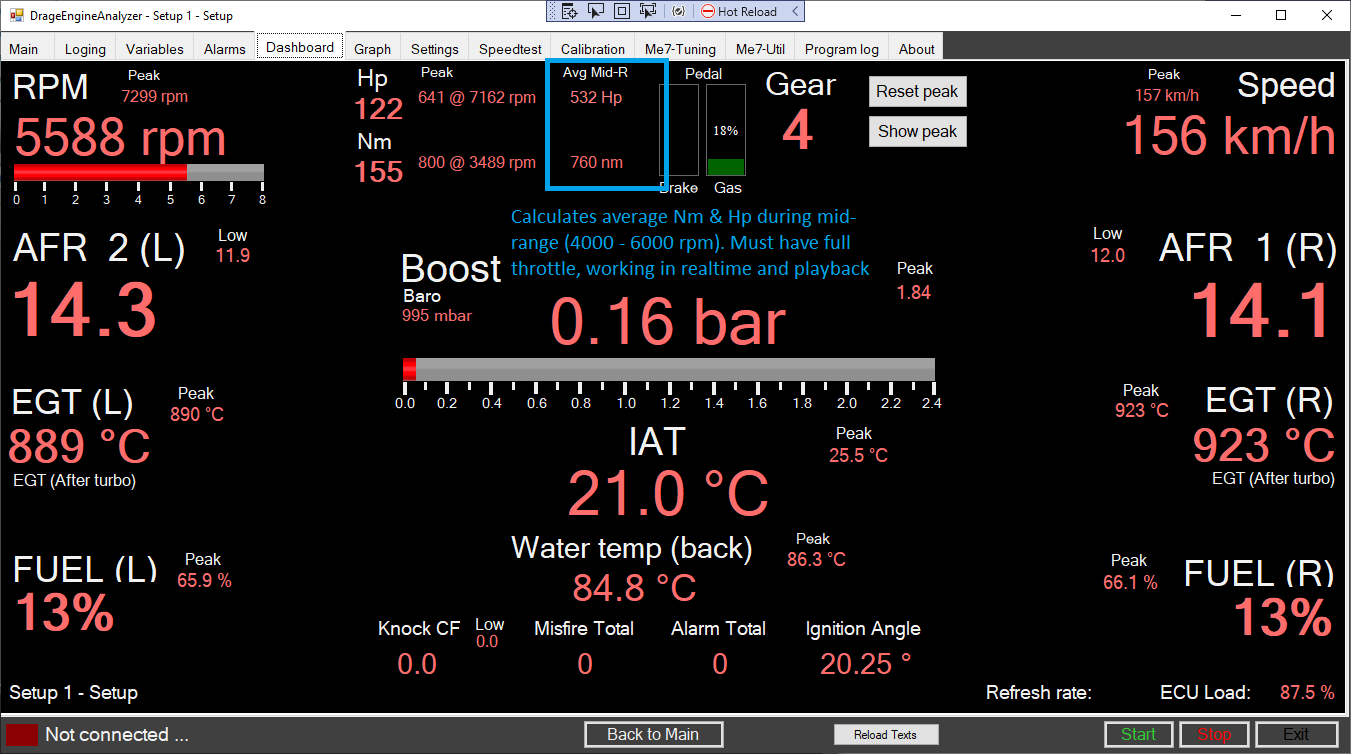

  • Added Nm and Hp on dashboard
  • Better startup of Me7 (error handling)
  • Added default activation for graph-variables

    December 21th 2019
  • Added calculated AFR (from lambda)

    December 8th 2019
  • New module for machine/license keys. Email me for your new license key !

    November 29th 2019
  • Added Single-turbo dashboard for 800x600 version

    November 22th 2019
  • Added Single-turbo dashboard for HD version

    November 20th 2019
  • Minor fixes

    November 14th 2019
  • Added new graph module.
  • Added HD version of the program.
  • Added alarms on the RS4look tabpage.
  • Enable more features.

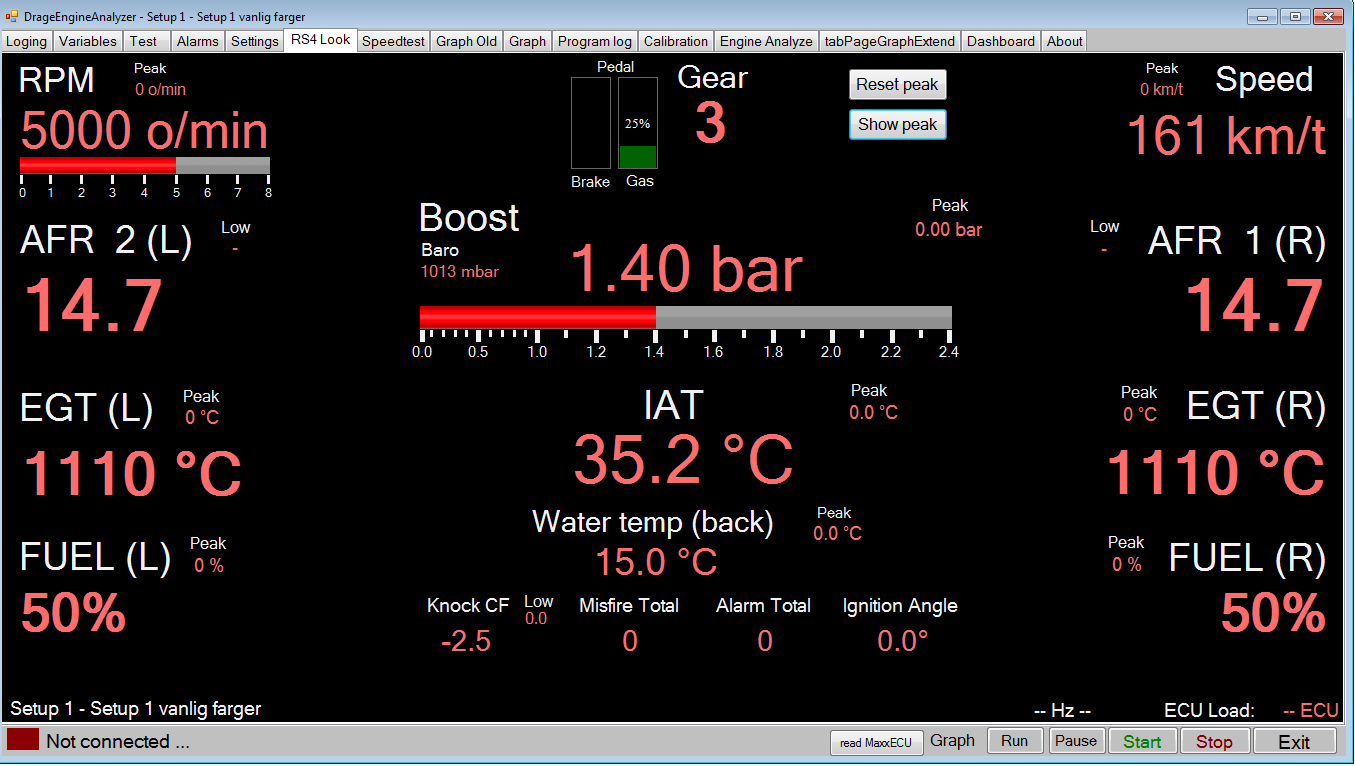

  • Showing realtime in RS4 style - BiTurbo mode

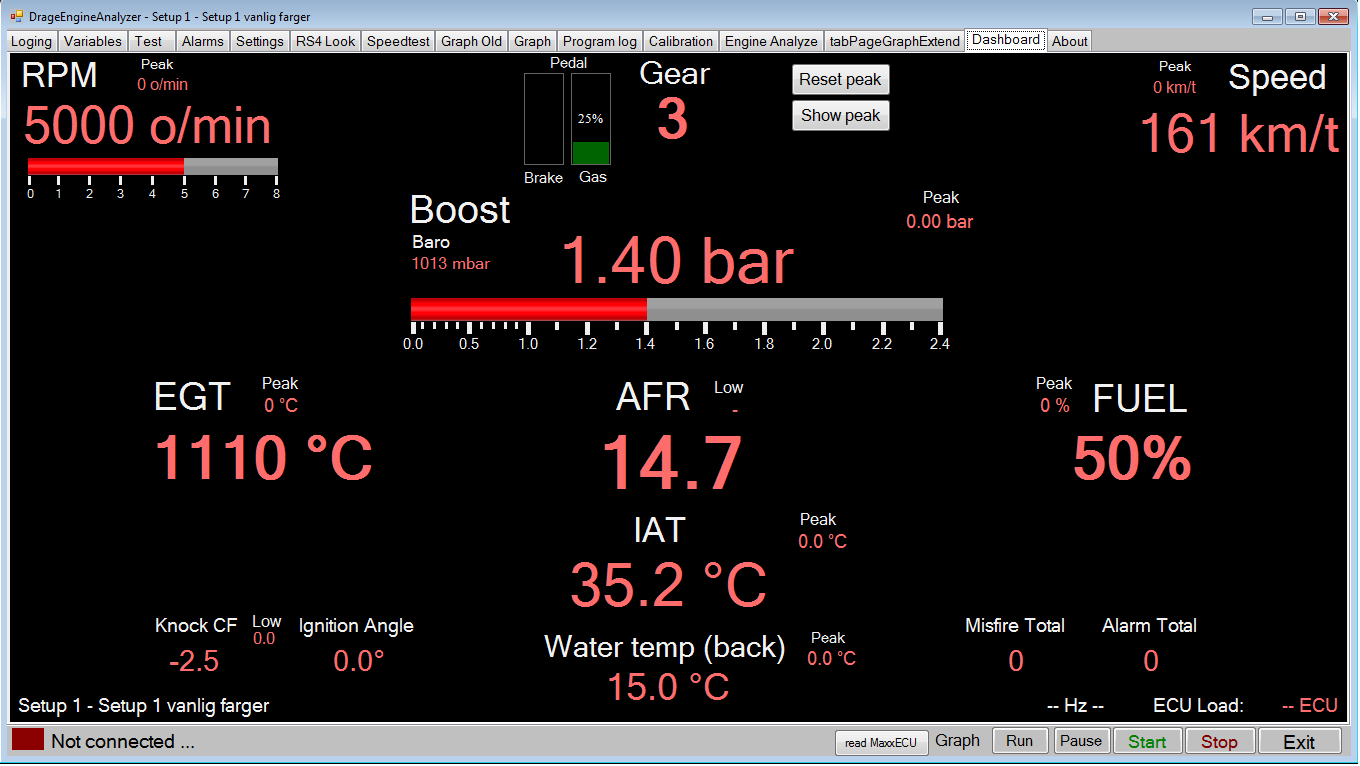

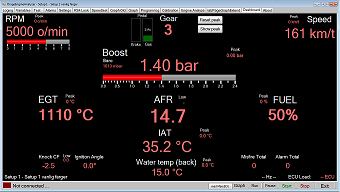

    Showing realtime in RS4 style - SingleTurbo mode

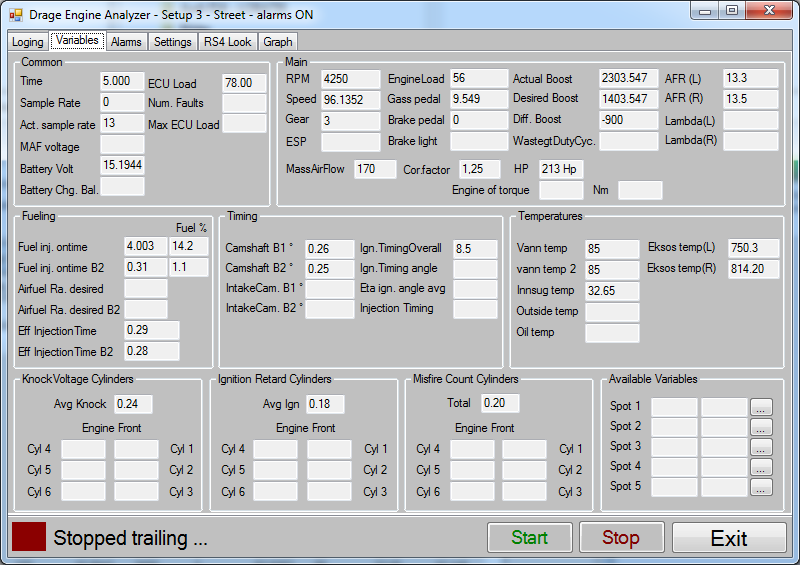

    Showing realtime for the variables that are in use

    Im just an car enthusiast that wanted to see all the ECU data realtime, ended up creating my own pogram :)
